Deck Accessories

We offer a full line of accessories for metal deck:

 Cell Closure

Pour Stop

Side Closure

Sump Pans

Concrete Inserts

Column Closure

Z Closure

J Closure

Support Angle

Closure angle

Weld Washers

Sidelap Screws

Attachment Screws

Tension Strap

Closure Channel

Ridge & Valley Plate

Flat Plate

Girder Filler

Clip Angles

Custom Shapes

Accessories are furnished Galvanized in 10 foot long stock lengths.  Standard gauge of accessories is 20ga. U.N.O. and are available in gauges from 20ga-10ga depending on design.

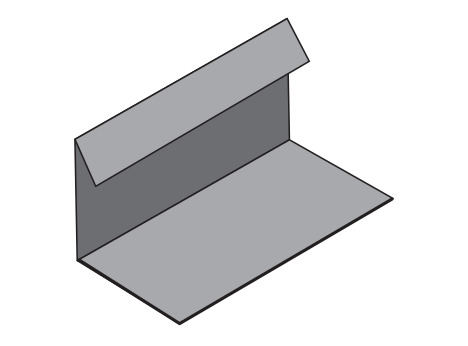

Pour Stop





Pour Stop is a formed steel angle used with metal floor deck.   The angle creates a stopping point for a poured concrete slab.  Pour Stop is typically used around the perimeter of the floor and any interior openings.

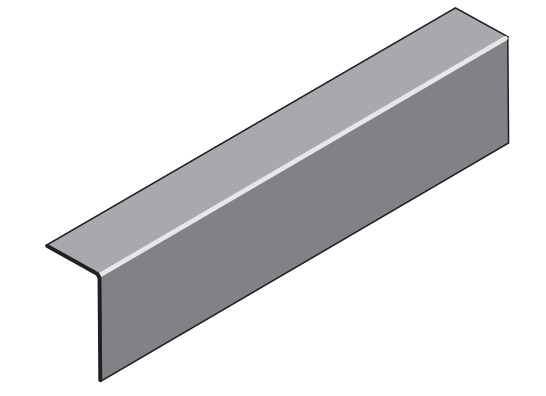

Cell Closure / End Closure





Cell Closure, also called end closure is fastened to the end of metal deck flutes.  Cell closure prevents wet concrete from flowing inside the end flutes down to the area underneath the decking.

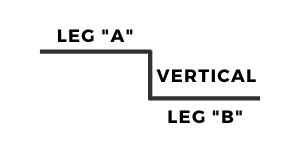

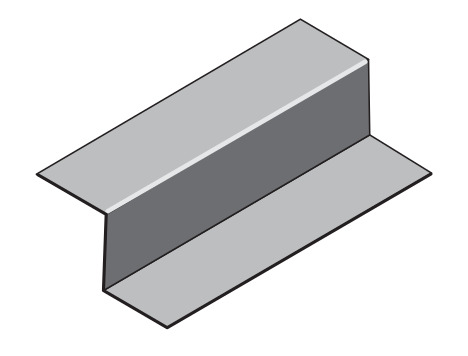

Z   Closure





Zee Closures are fastened to the open ends of sides and ribs for a tight-fitting metal deck closure and support.

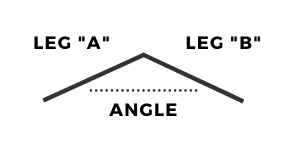

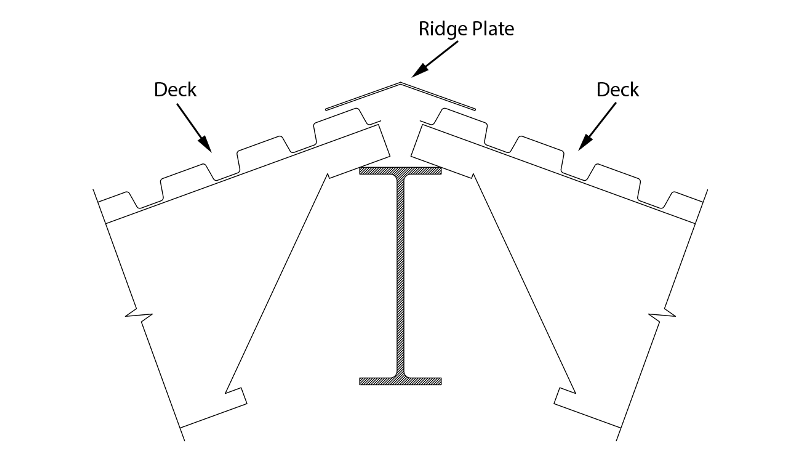

Ridge & Valley Plate





Ridge or Valley Plates are designed to support roofing maerial at hip or valley conditions.  They act as a smooth transition over two separate roof surfaces that protect the edes of the two meeting deck sheets.


Flat Plate / Column Closure







Flat Plates are used to close off the area around a column before concrete is poured. Flat plates are also known as screed angle or bent plate.

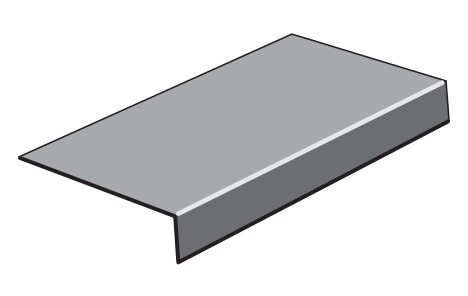

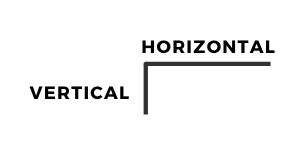

Girder Filler



Girder fillers are designed to close the gap between the weak end of the metal deck and the adjacent beam to prevent concrete from pouring through the gap.

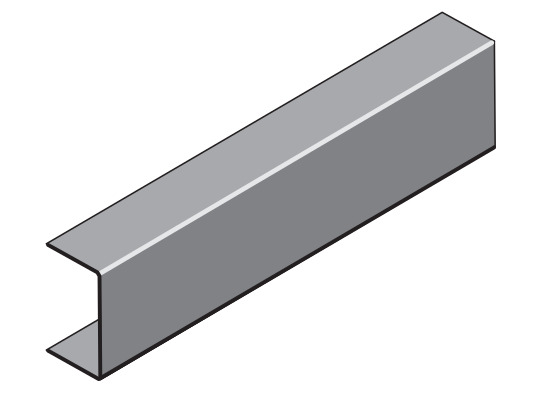

Side Closure / Channel Closure





Side Closures are used to close of the open flutes of metal decking if you have to rip a sheet at a diagonal.

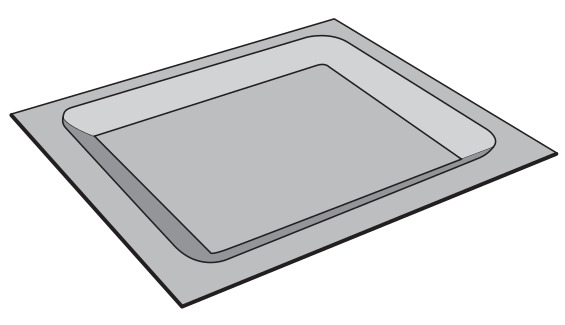

Sump Pan



Sump pans are used with roof drainage systems.  The sheet metal sump pan is a roof deck accessory that is designed to carry the load of the deck it replaces.
